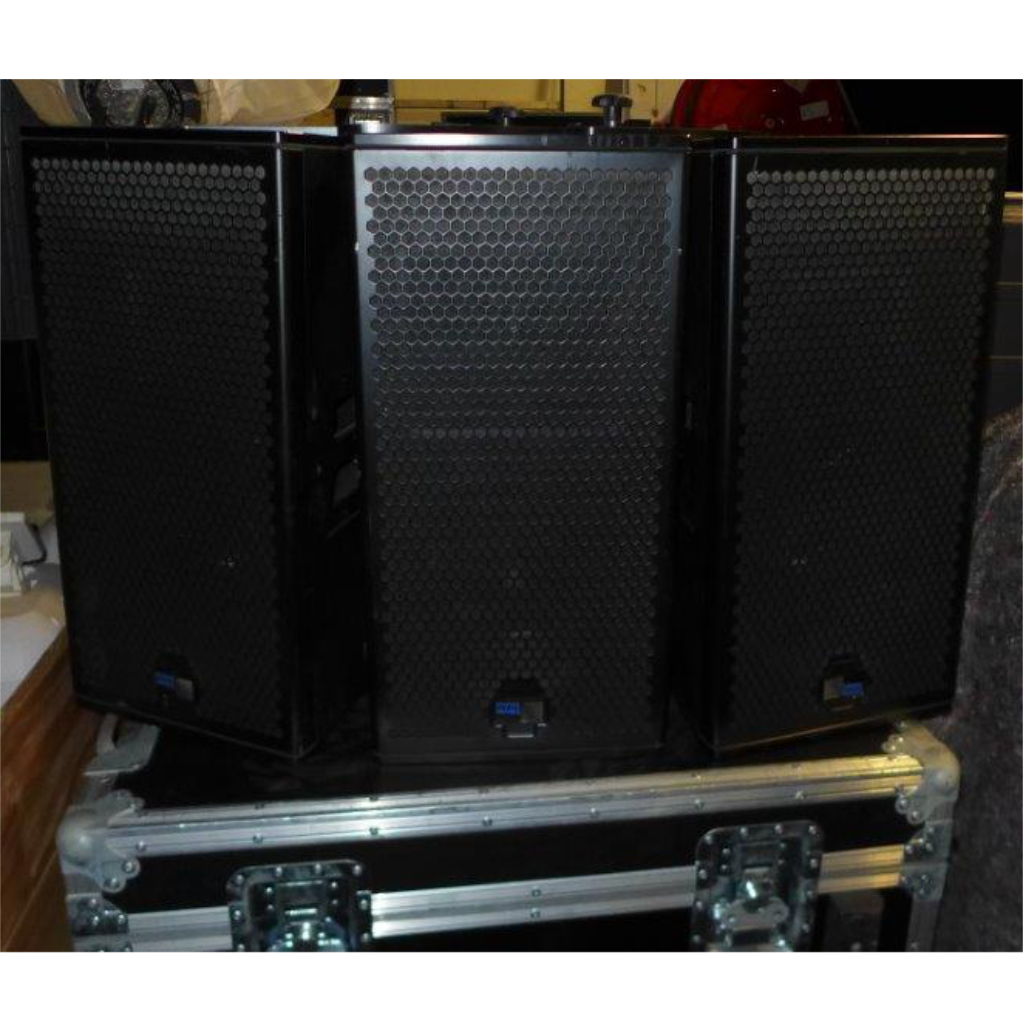

Meyer Sound UPJ-1XP

Meyer Sound UPJ-1XP: Small Box, Mighty Performance

The Meyer Sound UPJ-1XP loudspeaker proves that premium audio performance doesn’t have to come in a giant package. Whether you’re designing for a theater balcony, setting up an intimate venue, or installing a corporate AV system, the UPJ-1XP delivers extraordinary clarity, coverage, and consistency in a flexible, compact format.

Let’s uncover what makes this model one of the most reliable workhorses in the Meyer Sound lineup.

---

What is the Meyer Sound UPJ-1XP?

The UPJ-1XP is part of the IntelligentDC™ Series, combining self-powered performance with simplified installation. This 2-way loudspeaker features a rotatable horn, making it ideal for both vertical and horizontal orientations—a huge advantage for custom installs.

Core Specifications:

• Coverage: 80° x 50° constant directivity horn

• Frequency Response: 55 Hz – 18 kHz

• Peak SPL: 126 dB

• Drivers: 10″ LF and 2″ HF compression driver

• Dimensions: 20.20″ H x 11.15″ W x 10.00″ D

• Weight: 44 lbs (20 kg)

With Meyer’s signature linear response and advanced amplifier design, the UPJ-1XP delivers a tight, musical sound with zero distortion at high levels.

---

Why Choose the Meyer Sound UPJ-1XP?

Rotatable Horn for True Flexibility

The 80° x 50° horn can be rotated in 90° increments—great for maintaining pattern control in both landscape and portrait orientation.

IntelligentDC™ Simplifies Installation

Get all the benefits of a self-powered loudspeaker—including integrated amplification and signal processing—using just a single composite cable (DC power + balanced audio).

Clear and Consistent Output

Across the coverage pattern, the sound remains smooth and consistent, which is crucial for distributed systems or fill speakers.

Compact Yet Powerful

At under 45 lbs, it’s one of the most powerful speakers in its size class, capable of delivering 126 dB SPL—enough for a 300+ seat venue when used in multiples.

Superb for Delay, Front Fill, or Side Fill

The UPJ-1XP is frequently used in fixed installations, theatrical delay zones, balconies, and VIP box fills—areas that demand compact, clean solutions.

---

Perfect Pairings and Install Environments

---

UPJ-1XP vs. Similar Loudspeakers

While PRX and QSC are excellent portable options, the UPJ-1XP is unmatched when it comes to install precision, rigging flexibility, and audiophile-grade sound.

---

Technology That Powers the UPJ-1XP

Like all Meyer Sound XP-series products, the UPJ-1XP includes:

• Linear Frequency Response: From low to high SPL

• Ultra-Low Distortion: Clarity even at full output

• Thermal Protection & Limiting: To safeguard drivers and amplifiers

• Rigging Points: M8 rigging hardware allows for wall, ceiling, or truss mount

And most importantly, it communicates perfectly with Meyer’s MPS-488HP IntelligentDC power supply, ensuring safe, stable operation over long cable runs.

---

What Makes It a Favorite Among Integrators?

Integrators and AV designers choose UPJ-1XP because it:

• Reduces amplifier rack space

• Eliminates local power requirements

• Offers exceptional sonic quality for distributed systems

• Works seamlessly in both new builds and retrofits

For any scenario where space is limited, and sound quality is critical, the UPJ-1XP is a trusted solution.

---

Where to Purchase the UPJ-1XP

You can buy the Meyer Sound UPJ-1XP from trusted dealers like Sasphonik. They offer:

• Competitive pricing

• Fast shipping

• Warranty-backed purchases

Their staff can also help with system design, including pairing suggestions and mounting options.

---

Meyer Sound: Legacy of Innovation

Meyer Sound Laboratories has built a reputation for no-compromise audio performance. From the Berkeley HQ to stages worldwide, they’ve influenced every corner of pro audio.

Their systems are deployed in:

• Broadway shows

• Touring rigs

• World-class houses of worship

• Corporate AV systems

The UPJ-1XP fits seamlessly into this prestigious lineup, offering all the hallmarks of Meyer engineering in a sleek, install-friendly format.

---

FAQs About the Meyer Sound UPJ-1XP

Is the UPJ-1XP weatherproof?
It’s designed for indoor use. A weather-protected version is available upon request.

Does it require a separate amp?
No, it’s a self-powered speaker, receiving power and audio via IntelligentDC.

How far can I run cables with IntelligentDC?
Up to 500 feet (150 meters) without signal or power degradation.

Is the horn fixed or rotatable?
It’s rotatable in 90° steps, offering great flexibility for installations.

Can it be mounted horizontally?
Yes. The horn rotation allows for full vertical or horizontal installation while maintaining proper dispersion.

What’s a great subwoofer match for UPJ-1XP?
The Meyer UMS-1XP is an excellent choice, offering matching dimensions and IntelligentDC compatibility.

---

Final Thoughts: Is the UPJ-1XP Worth the Investment?

If your project demands superb sound in a compact form factor, the Meyer Sound UPJ-1XP is a clear winner. Whether it’s installed in a corporate auditorium or filling a church balcony, this speaker does it all—cleanly, clearly, and consistently.

For audio professionals who need a high-performance, flexible speaker that won’t compromise on output or clarity, the UPJ-1XP delivers in spades.

Explore pricing and configuration options now at Sasphonik’s Pro Audio Shop.
